General introduction

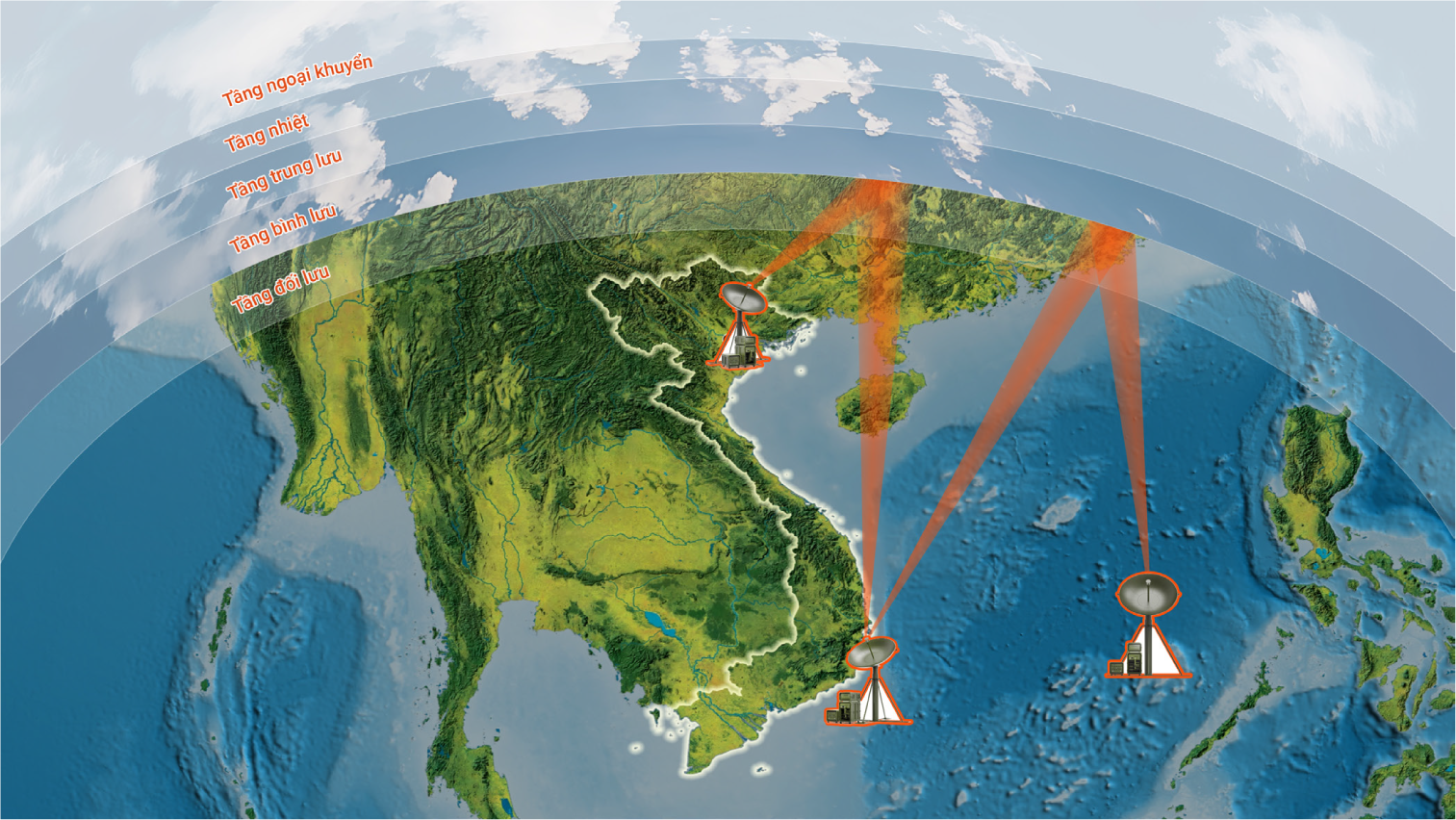

The troposcatter system is long-range communication, beyond line of sight, by using the Earth's troposphere as a signal propagation medium. It is primarily employed in situations where line-of-sight communication is not feasible due to the Earth's curvature or obstacles like mountains, buildings, or dense vegetation. The system is a component of strategic military information transmission networks.

Feature

  • Cognitive Radio: Flexible update capability (function, waveform).
  • Long-range beyond line-of-sight communication.
  • Can be used as a repeater station.
  • Automatic link align.
  • ECCM: Frequency-hopping assures reliable and successful operations in densely jammed environments.
  • Adaptive Power Control.
  • Adaptive Frequency Control.
  • Adaptive Data Transmission.
  • GNSS support.
  • Supports integrate customer's waveforms.

Specification

Operating Frequency

C band

Output power

Up to 1kW

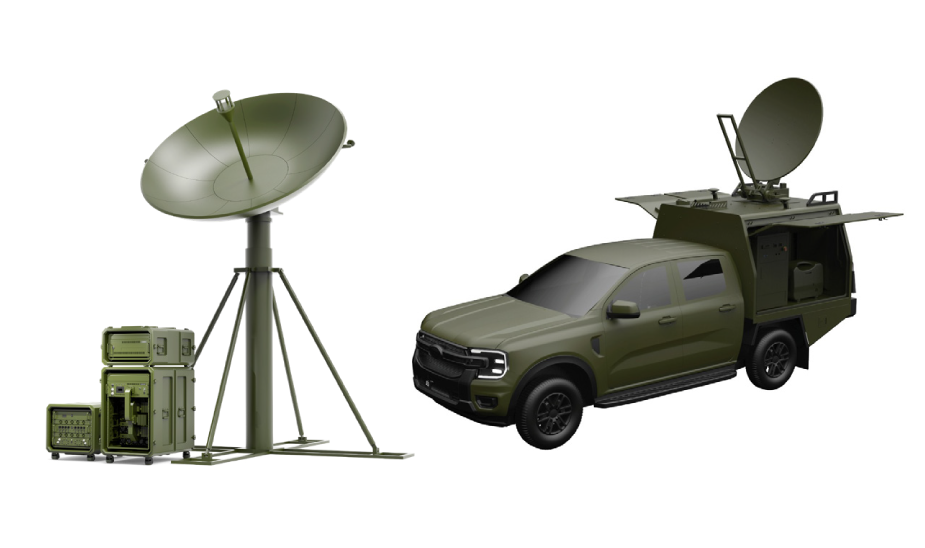

Antenna type

1.2m or 2.4m Parabolic Antenna

Operating Mode

Point to Point

Data Rate

Up to 105 Mbps with single stream

Encryption

AES256

Frequency Hopping (FH)

Yes

Power Supply

AC 220 V

Temperature

-10℃ to 70℃

Dust & Water Resistance

IP67

Shock and Vibration/ Humidity/ Airtight/ EMI/ EMC

Military Standard
