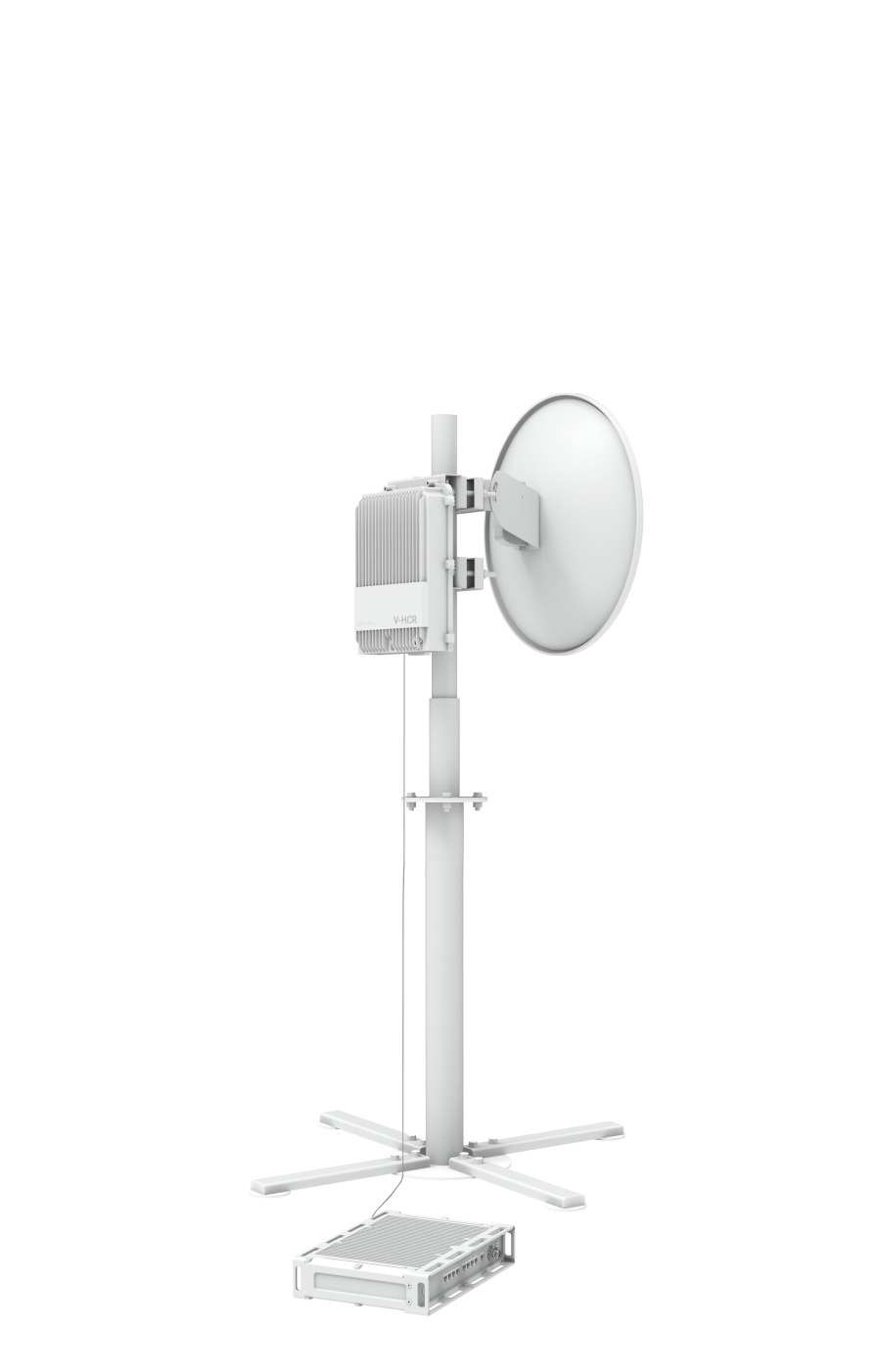

HIGH CAPACITY RADIO RELAY DEVICE - CXX19A
CXX19A is a high-capacity radio relay device with high-speed broadband, used for dedicated stations, repeater stations or mounting on vehicles.
General introduction
CXX19A is a high-capacity radio relay device with high-speed broadband, used for dedicated stations, repeater stations or mounting on vehicles.
CXX19A is a component of strategic military information transmission networks.
Features
- Software Defined Radio: Flexible update capability (function, waveform).
- Can be used as a repeater station or mounted on the vehicle.
- ECCM: Frequency-hopping assures reliable and successful operations in densely jammed environments.
- Adaptive Power Control.
- Adaptive Data Transmission.
- GNSS support.
- Supports integrate customer's waveforms.
Specifications
Outdoor-Unit size (WxDxH)
250x280x70 mm
Frequency hopping (FH)
Yes
Data rate
Up to 100 Mbps
IP Interface
4 Ports
E1 Interface
2 Ports
Outdoor-Unit Weight
≤ 10 kg (antenna not included)
Inner-Unit Size (WxDxH)
350 x 254 x 73 mm
Inner-Unit Weight
≤ 10 kg
Power Supply
24/48 VDC; AC 220 V
Temperature
-10℃to 70℃
Dust & Water Resistance
IP67
Shock and Vibration/ Humidity/ Airtight/ EMI/ EMC
Military Standard
