General introduction

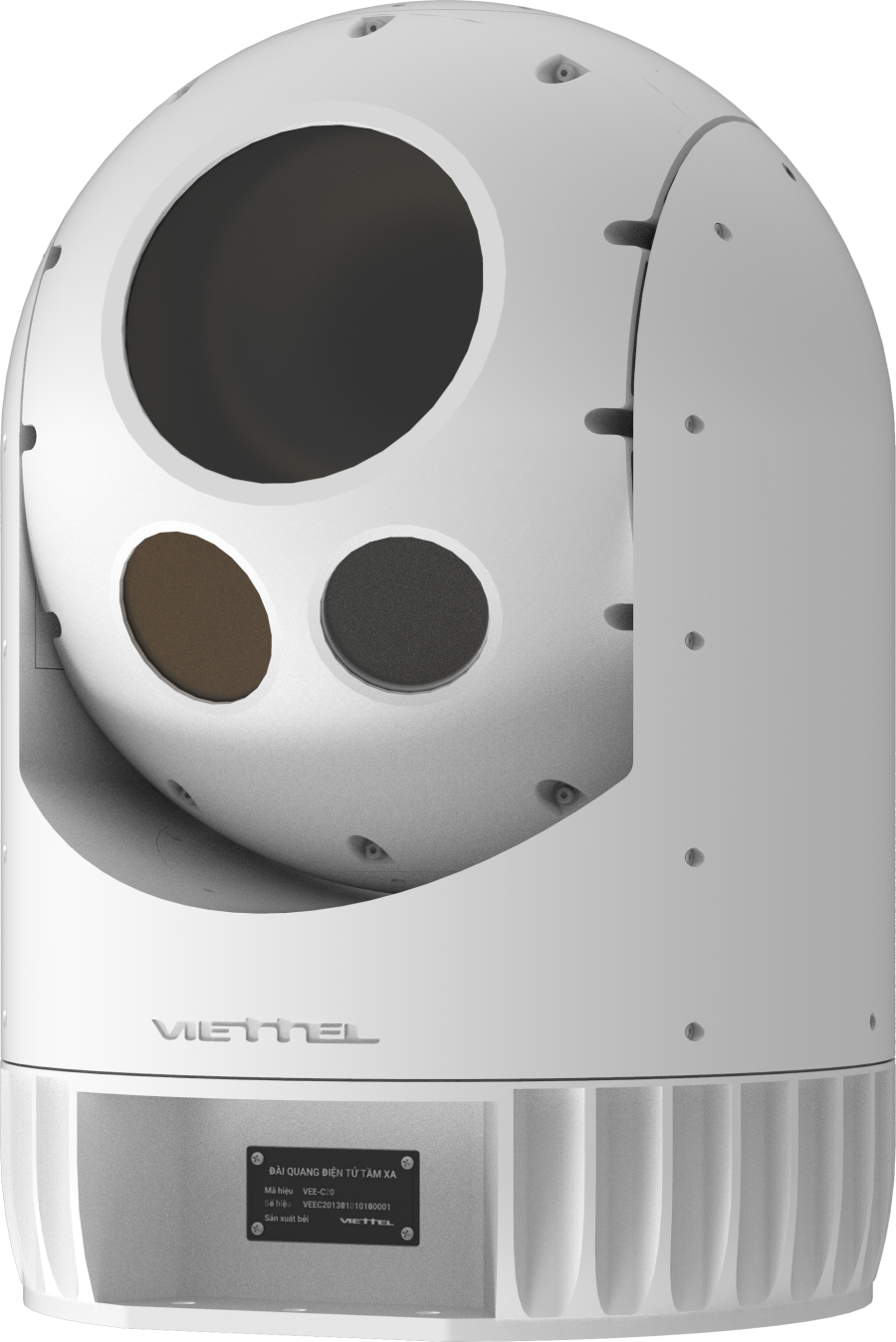

It is a long-range electro-optical surveillance, monitoring, and target designation station. Equipped with multi-channel electro-optical sensors (day/thermal/laser rangefinder) and multiaxis gimbal integrated with inertial stabilization control technology, the system is suitable for deployment on mobile platforms such as UAVs, ships, and vehicles, performing tasks of early detection, automatic tracking, and providing accurate information about targets, including images, angular coordinates, and distances.

Features

  • High resolution imaging for day and night surveillance.
  • Four-axis gimbal stabilization.
  • Automatic target tracking.
  • High-precision target indication.
  • Harsh weather resistance and 24/7 operation capability.

Specifications

Visible camera

Sensor type: CMOS ; Frame rate: ≥ 30 Hz ; Optical zoom: ≥ 12×

IR camera

Sensor type: MWIR / Cooled ; Frame rate: ≥ 30 Hz ; Optical zoom: ≥ 12×

Laser range finder

Yes

LOS Stabilization

Type: Four-axis gimbal

Weight

≤ 50 kg

Input voltage

24 VDC / 220 VAC ; I/O interface: Ethernet

Environmental

Standard: MIL-STD-810G
