3D TACTICAL AIR-DEFENSE RADAR (L-BAND)
3D tactical air-defense radar operates in the L-band to detect and locate flying targets at low altitude and short range.
General introduction
3D tactical air-defense radar operates in the L-band to detect and locate flying targets at low altitude and short range.
3D tactical air-defense radar is equipped for Air Defense Force.
Feature
- Surveillance, detection, tracking and d ing coordinates, velocity of the low-altitude flying targets.
- High mobility, easy deployment and retrieval operation.
- Built-in ECCM capabilities.
- Supply target’s information to C4ISR system or air defense missile system: azimuth, range, speed and moving direction.
- 24/7 operation.
Specification
Coverage volume
Azimuth: 360°; Range: Short range
Scanning rate
Up to 24 rpm
Number of tracks
≥ 60
ECCM
Automatic jammer reconnaissance and frequency hopping
24/7 operation
Yes

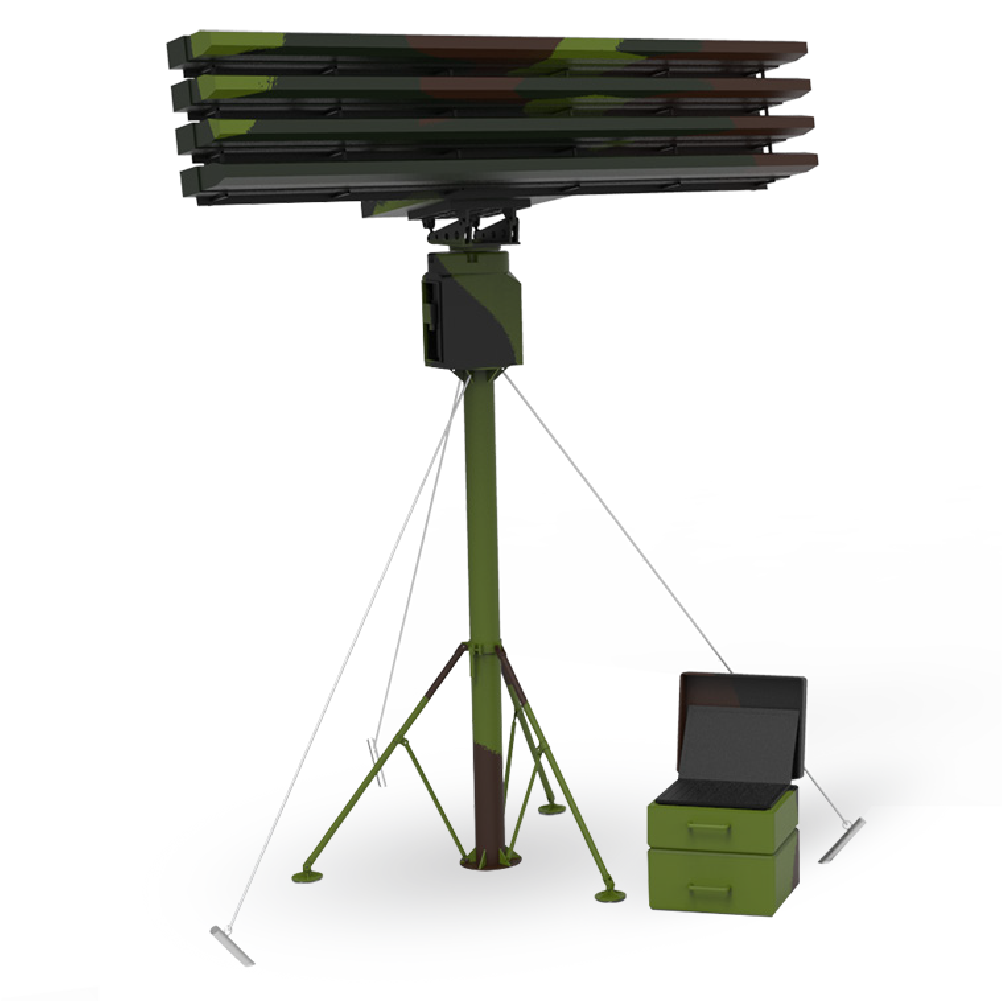

Installation
Portable with tripod
Deployment, retrieval time
≤ 30 minutes
